CFL12 – Flow Switch/Flow Transmitter/Level Switch/Interface/Halar Coating
The CFL12 is a Flow, Level and Interface monitor that provides multiple process monitoring and control capabilities for the user. The unit can either be used as a Flow or Level switch while at the same time providing a constant independent 4…20mA analog output monitoring the flow velocity of the process. The CFL12 can be used in High Temperature applications up to 300°C (w/ extended neck) and also for extremely Low Flow applications from 3 ml/m to 300 ml/m.
The CFL12 also enables customer access to the factory settings. The customer is able to field calibrate the unit to the particular medium, whether it is a water, oil or gas. The 4 and 20 mA settings are also field set.
The CFL12 comes standard with either an AC or DC Power Supply. Like all of Sitron’s products, it can be configured to accommodate the customer’s unique process requirements. All models can be ordered with a great variety of threaded, flange or sanitary process connections as well as customer defined insertion length. The GX housing version comes standard with a glass window which enables visualization of LED switch status. The GX housing comes with the following certifications: UL, cUL, CSA, IECEX and ATEX for installation in hazardous environments.
Power Supply: DC: 12~30V AC: 85~264V 50/60Hz / 125Vdc
Consumption: 130mA
Output: Relay (1 SPDT) 6A @ 250Vac / 30Vdc
Linear 4~20mA (error +/- 10%) Flow for Liquids
Repeatability: <1%
Gain Adjustment: Switch for Gas / Oil / Water flow
Measuring Range: Liquids: 3cm/s…3m/s
Gas: 5cm/s…5m/s
Low Flow Range: Liquids: 3 ml/m to 300 ml/m
Accuracy: ± 10%
Response time: 1…10 sec
Temperature Gradient: 15°C/min
Indication: Bargraph 8 led´s
Housing: Aluminum painted (blue) with glass viewing window
Electrical Connection (cable entry): 2 x 3/4” NPT
Process Connection: BSP, NPT, flange or Sanitary
Body Material: 316 S.S
Halar coating for agressive medium
Ambient Temperature: -10…+60°C

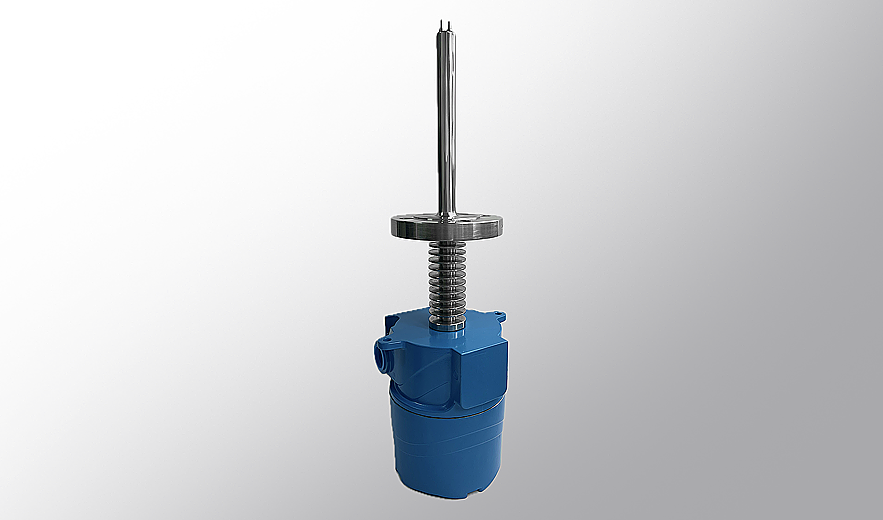

Work Temperature: -20…+80°C up to -20 to +300°C (w/ extended neck)
Halar Coating: -20 up to 150°C
Max Pressure: @ 50°C / 122 °F (100 bar / 1450 psi )
@ 150°C / 300 °F ( 90 Bar / 1300 psi)
@ 200°C / 390 °F ( 80 Bar / 1160 psi)
Class Protection: IP66
Approvals GX proof Housing (Optional): ATEX, DEMKO 07 ATEX 0622294,
0539 II 2 G EX d IIC Gb
0539 II 2 D Ex tb IIIC Db
IECEx
IECx UL 08.0005U
Ex d IIC Gb
Ex tb IIIC Db
Classifications: Class I, Div. 1, Groups B, C, D
Class II, Div. 1, Groups E, F, G
Class III
NEMA Type 4X: Class I Zone 1 A Ex d IIC
Ex d IIC (Canada)
- Flow, Level or Interface Switch (1X SPDT relay)
- Flow Velocity Transmitter (4…20mA) for Liquids
- Set-Point Adjustment
- Sensitivity Adjustment
- Factory Adjustment Feature (Set the electronics based on the medium; Water, Oil or Gas)
- Corrosion resistant 316SS Body
- Quick response time for flow, level and interface
- Reverse Polarity and Voltage Surge Protection
- Food and Beverage
- Industry Water
- Treatment Plants
- PetroChemical Industry
- Pharmaceutical Industry
- Pulp and Paper Manufacturers
Calibration Certificate
Material Certificate
Certificate of Origin
Housing (Optional): ATEX, DEMKO 07 ATEX 0622294,
0539 II 2 G EX d IIC Gb
0539 II 2 D Ex tb IIIC Db
IECEx
IECx UL 08.0005U
Ex d IIC Gb
Ex tb IIIC Db
Classifications: Class I, Div. 1, Groups B, C, D
Class II, Div. 1, Groups E, F, G
Class III
NEMA Type 4X: Class I Zone 1 A Ex d IIC
Ex d IIC (Canada)
