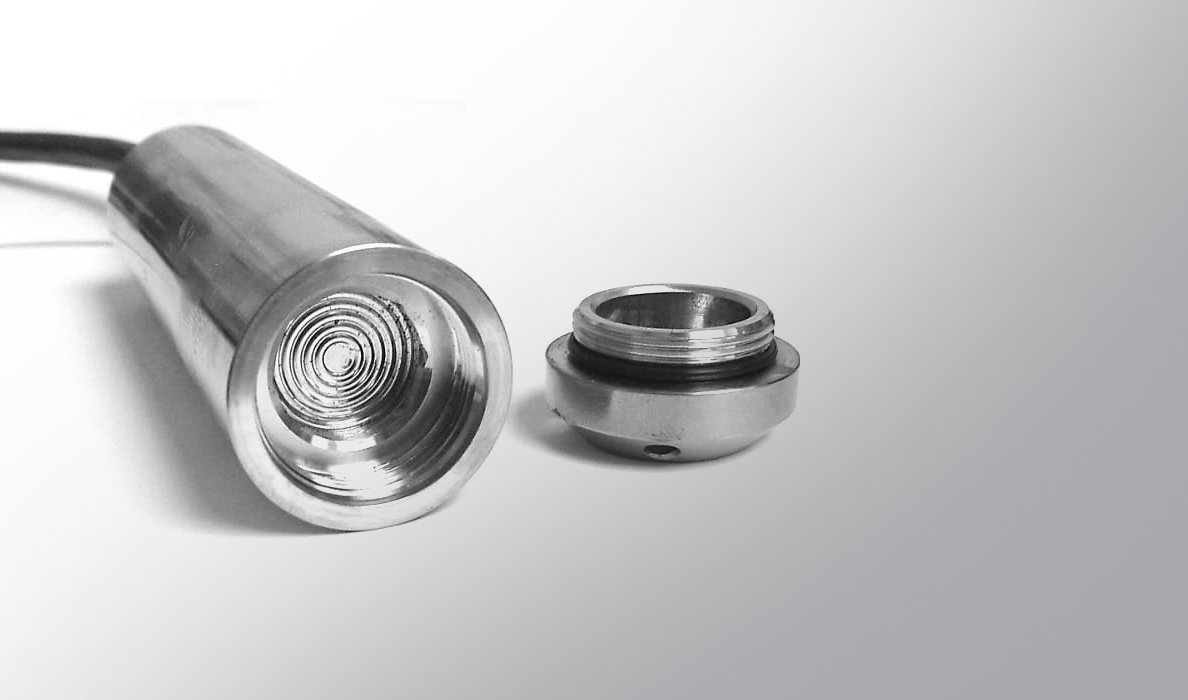

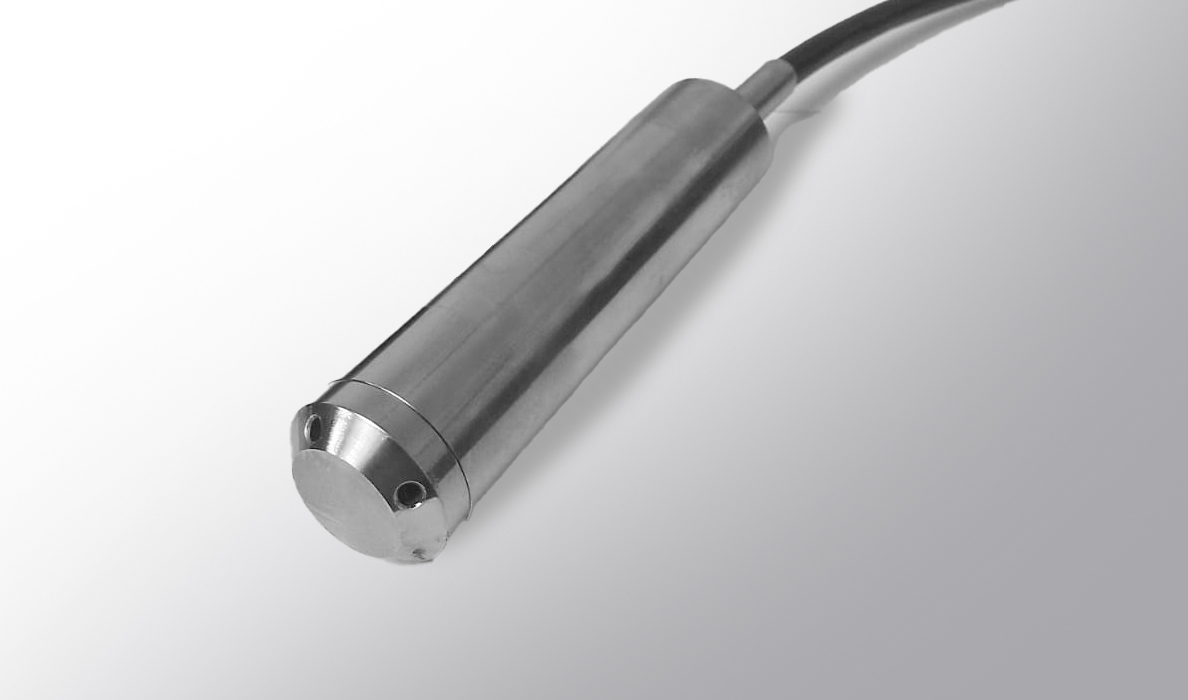

LHT840 – Level and Temperature Transmitter (Sensor and Cable)
Sitron’s LHT840 combines process Temperature monitoring and a Hydrostatic Level monitoring into one transmitter. This unit can be used to measure both the temperature and the level of liquids in tanks, wells, and other containers.
The LHT840 is offered with a great degree of mounting flexibility and can be made in a wide variety insertion lengths and pressure ranges. The LHT840 models can also be ordered as the LHT842 with an electronics module within the enclosure, providing a Zero/Span adjustment. They can be constructed with 316SS rigid rods or with long lengths of cable for depth measurement. All of Sitron’s Hydrostatic Level Probes have a 4-20mA (2-wire) output signal, are fully temperature compensated within the stated range and are offered with surge protection. HART communication protocol is also available.
Hydrostatic level measurement is commonly used in various industries, including food, water/wastewater, and chemical processing, to name a few.
Application: Level Measurement of clean liquids free of suspended solids
Operating Voltage: 12…30Vdc
Current Consumption: 22mA max.
Output: LHT840 & LHT842: 4…20mA (2 wire) w/ Hart (optional)
Temperature Output: 4…20mA
Accuracy: +/- 0.5%
Sensor Material: 316SS Gauge or Absolute sensor
Pressure Range: 0 to 200 Bar (316SS sensor)
0 to 40 Bar (Ceramic)
Temperature Range: -10 to 80°C
Operating Temp.: -10 to 80°C
Electrical Connection: Fixed Cable Out
Cable: Polypropylene cable with vent tube or rigid 316SS rod
Body Material: 316SS or PVC
Operating/ Compensated Temperature: -10 to +80ºC / -10 to +70ºC
-0 to +80ºC / -0 to +70ºC (olive oil sensor)
Overpressure: 3 x F.S.
Class Protection: IP68 Sensor
- Easy to install
- Reliable measurement
- Available in several process connections such as: threaded, flange or sanitary (with Housing only)
- Hart protocol communication (LH850 without housing, upon request)
Depth/level measurements in ground water, deep wells, water towers, rivers, sewage treatment plants and other similar applications.
Calibration Certificate
Material Certificate
Certificate of Origin
