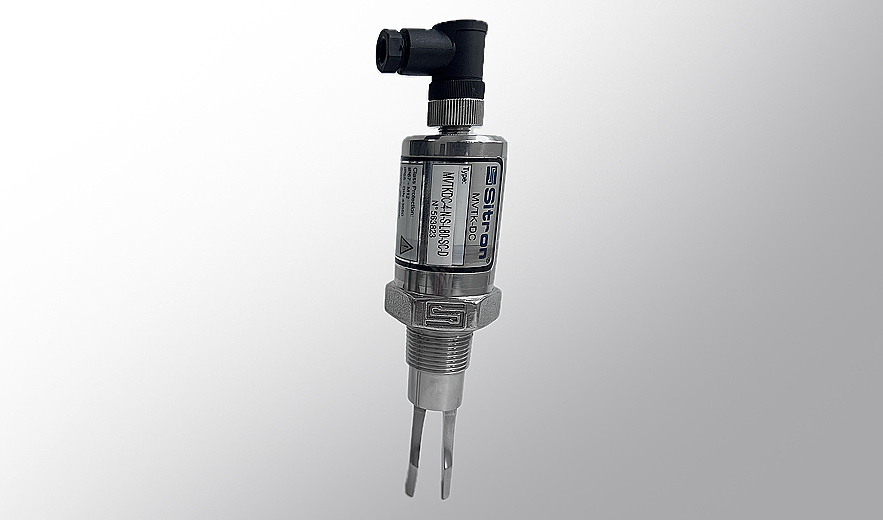

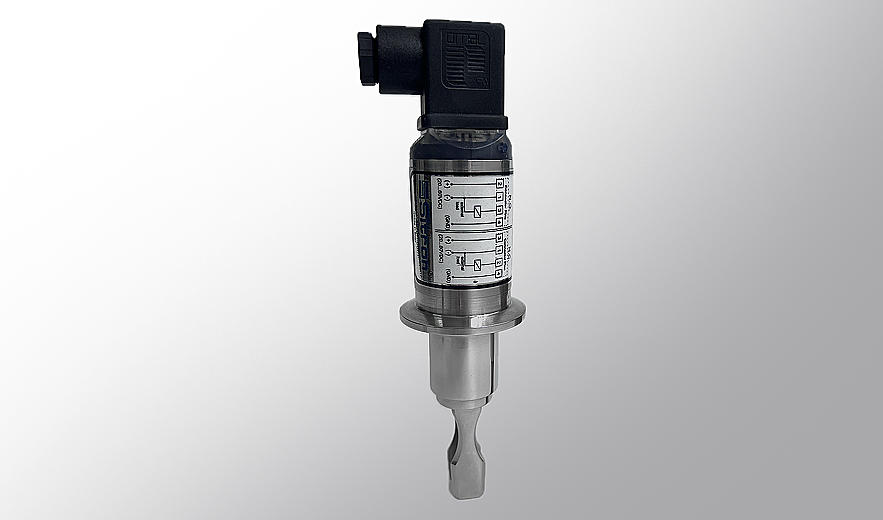

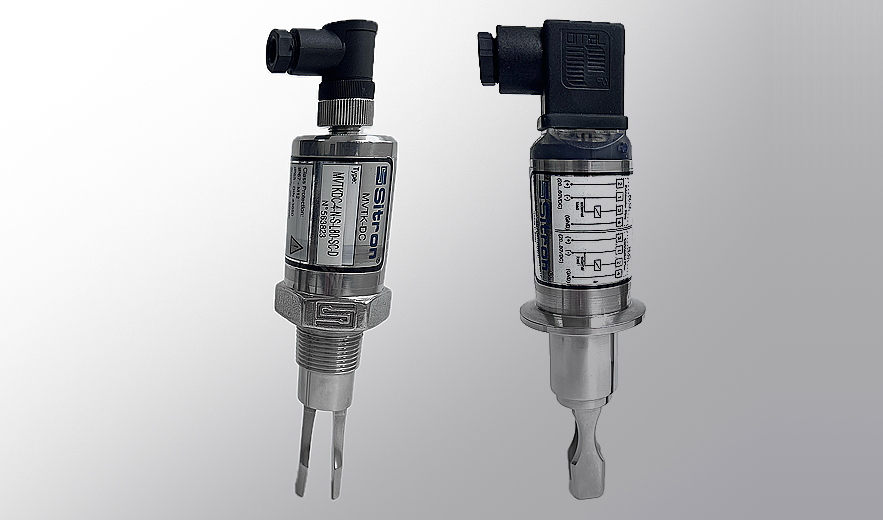

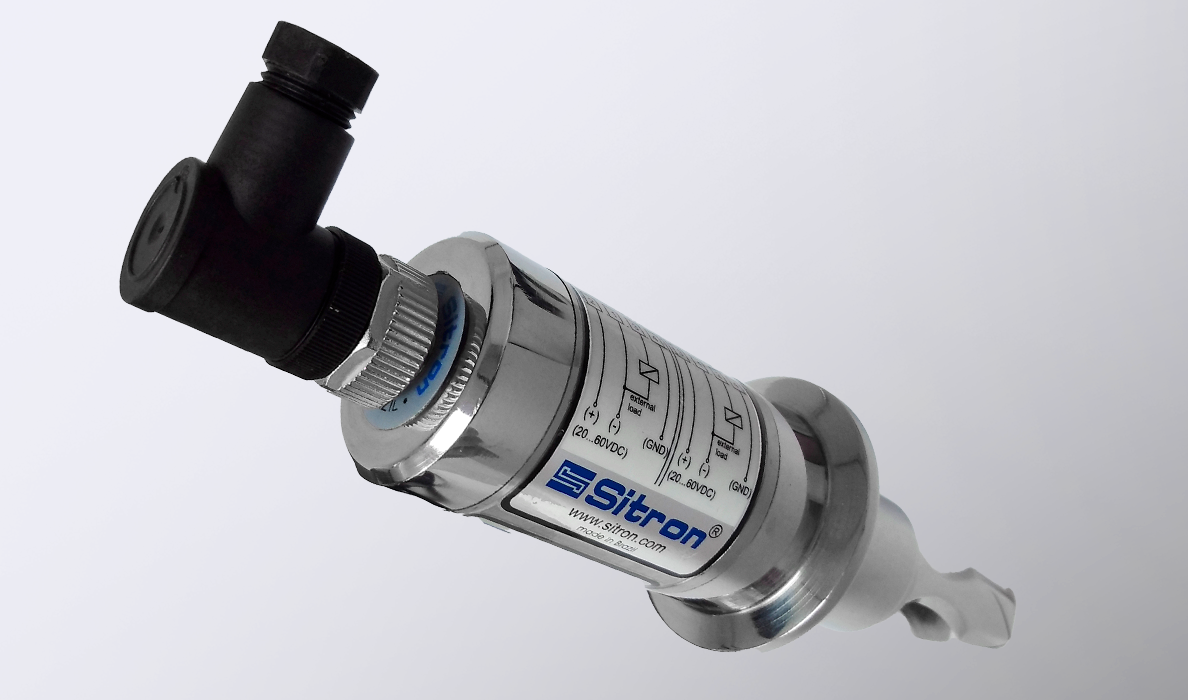

MVTK – Mini Version
Sitron’s Mini V-Tork Series point level switches for liquids are a more compact version of the standard VTKR model. The MVTK’s vibrate at a fixed pre-defined resonant frequency. When the tuning fork is submerged in the medium the frequency at which the switch is vibrating, changes. This change is detected by the unit’s electronics and is converted into a switch output (PNP/NPN for the MVTK models).
All models are made with 316 Stainless Steel and are available with Halar coatings and hygienic fittings for sanitary applications. Standard versions can operate at temperatures up to 80ºC (176ºF) and medium temperature versions can operate at temperatures up to 100ºC.
Application: Level switch for liquids
Operating Voltage: DC: 20…60 Vdc AC: 85…264 Vac
Current Consumption: +/- 3mA
Output: DC: PNP (3 Wires) AC: Direct Load Switching (2 Wires)
Medium Viscosity: 0.5…5000 cSt
Accuracy: 0.1%
Repeatability: < 0.5mm
Time Delay: 1 sec.
Switching Point: 13mm from the tip
Load Current (Max): 100mA
Body Material: 316 Stainless Steel
Electrical Connection: Plug DIN 43650 or M12 Quick Connector
Process Connection: 3/4” to 1 ½” BSP, NPT or sanitary
Wetted Material: 316 Stainless Steel
Operating Temperature: -14 to 212º F (-10 to 100ºC)
Max Pressure: 725 PSI (50 Bar)
Class Protection: DIN 43650 connector IP 65 IEC
M12 connector IP67 (NEMA 6)
- Unaffected by variations in conductivity or dielectric constant
- Unaffected by foam, tank agitation or vibration
- Available in Threaded, Sanitary and Flanged connections
- Available with customized length options to best suit your application
- All 316SS body and wetted parts, Halar coating when necessary
- Food and Beverage Industry
- Water Treatment Plants
- Petro-Chemical Industry
- Pharmaceutical Industry
- Pulp and Paper Manufacturers
Factory Calibration Certificate
Material Certificate
Certificate of Origin
