SC750U – Universal Power Supply

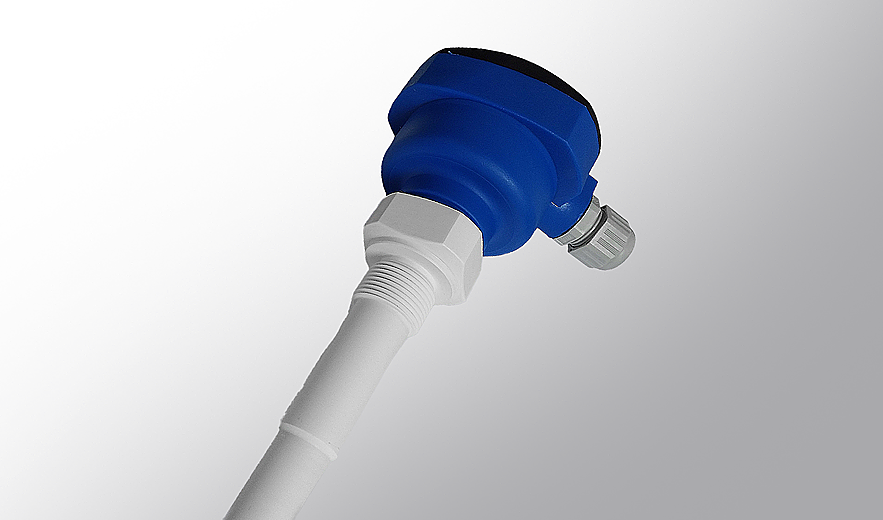

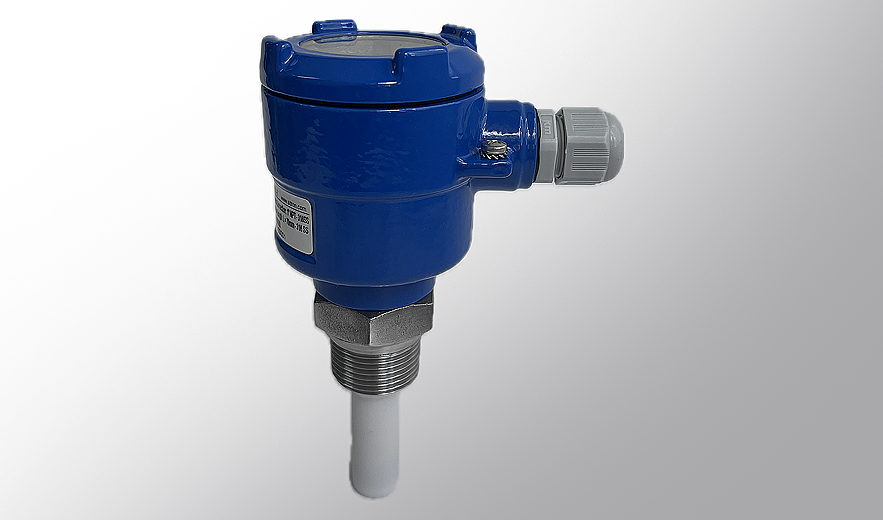

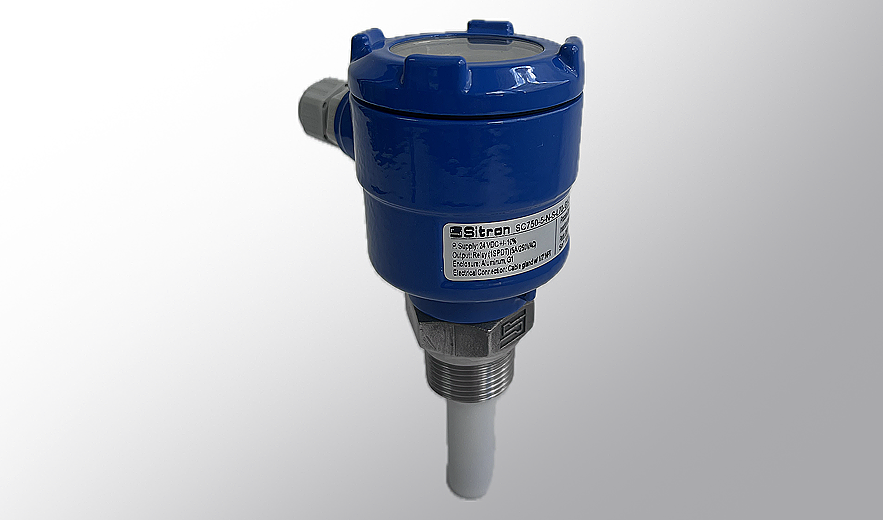

The SC750 Capacitance Level Switches are ideal for High/Low level detection for liquid, solids, granular materials and pastes. These units can also detect level without being in contact with the product through a sight glass. Unlike other capacitance probes, the SC750 Series can detect conductive, non-conductive or low dielectric materials with extremely accurate performance without requiring an external reference or installation in a metal vessel. The SC750 is also designed for level detection in large depths and in media with vortex agitation, it can be made with cable (to depths up to 2 meters) or rod rigid stainless steel (up to 2 meters) giving more flexibility to complex applications, where it is impractical to use standard Capacitive Probes.
Application: Level detection for liquids and solids
Power Supply: DC:24Vcc (± 10%) or AC: 85…240Vac
Consumption: 4VA
Output: Relay (NO + NC) 5A-250Vac
Adjust: Sensibility
Time Delay: 0.1 to 20 seconds
Oscillation Frequency: 5MHz
Housing: G2 Aluminum or N2 Nylon
Electrical Connection: Cable Gland 1/2”NPT or BSP
Process Connection: 3/4” to 1 ½”BSP, NPT flange or sanitary connections
Body Material: Polyethelyne cable, 316SS
Sensor Material: PTFE
Work Temperature: -10 a + 80°C
Max. Pressure: 10 Bar
Class Protection: IP 66
- No Moving Parts – Rugged Construction
- Highly customizable: PTFE or PVC Sensing Tip
- Extended Lengths with both Rigid 316 Rod or Cable
- Threaded, Flange or Sanitary Process Connections
- Available in DC or Universal Power Supply versions
- Almost completely immune from build-up, coating media or aggressive products
- Easily applied in a wide range of applications such as: water, oils, corrosives, solids, powders, grains, conductive as well as non-conductive medias.
- Food and Beverage Industry
- Water Treatment Plants
- Petro-Chemical Industry
- Pharmaceutical Industry
- Pulp and Paper Manufacturers
Factory Calibration Certificate
Material Certificate
Certificate of Origin
