SP96FA Pressure Transmitter
The SP96FA pressure transmitters are ideal for gauge and absolute pressure measurement of gases, liquids and vapors.
With a great differential in terms of design and assembly, it uses piezoresistive cell technology and has a 316 stainless steel membrane filled with silicone. These features provide excellent accuracy, stability and linearity in transmitter performance. The electronic module inserted in the Nylon housing has Zero & Span Adjustment for a new measurement range adjustment with turndown of 40%.
With 316 stainless steel body, it provides great resistance to vibration, temperature variation, among other extreme conditions in industrial environments.
The SP96FA Transmitter can be manufactured and adjusted for various pressure measurement ranges up to 1000 bar with 0.5% accuracy. It has a 12…30 Vdc supply, current output from 4 to 20 mA (two wires).
They are also available in different connection types to meet the high market demand.
- Produtos Químico, Tratamento de Água
- Produtos Alimentares e Bebidas
- Saneamento Básico e Sistema de Combate de Incêndio
- Indústria Farmacêutica

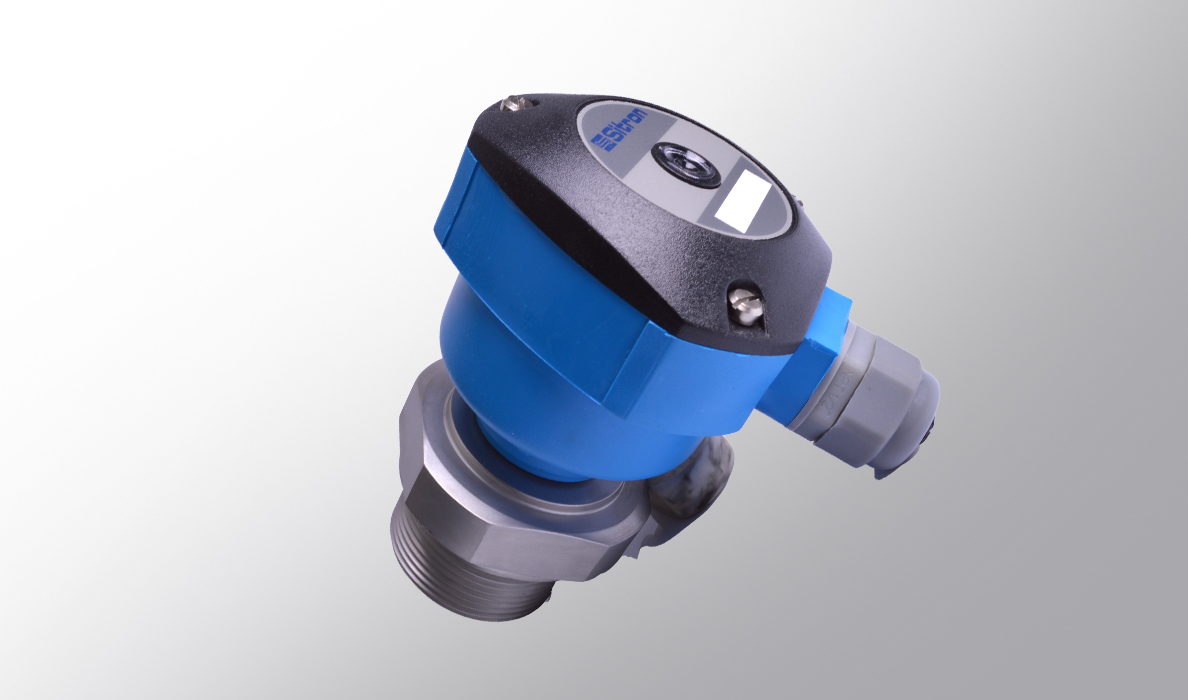

- Designed for reliable limit level detection of a wide range of fluids, oils, paste-like materials, foam, fibers and solids (including plastic pellets) with either high or low densities or dielectric constants.
- Generates a high frequency sensing field which is immune to product adhesion, making it an ideal solu- tion for viscous or sticky media such as ketchup, yogurt, syrups, creams or pastes, tar like materials, alkalis, etc.
- An ideal replacement for other technologies such as vibrating forks, capacitive, ultrasonic or conductive level switches.
- Direct mounting into tanks, vessels, pipes or containers.
Fully configurable sensitivity adjustment using a simple magnet pen - Universal design for all types of fluids (electrically conductive and non-conductive) with a sensing tip made from PEEK or PTFE.
- High stability at high sensitivity (can be used in applications with substances with εr ≥ 1.5).
Aplicação: Monitorar e detectar Fluxo de liquidos Alimentação: DC: 24Vcc (± 10%)
Consumo: <1 00mA
Saída:Relé (1 SPDT) 5A – 250Vac / 4~20mA (3 fios)
Regulagem (set point): Líquidos: 3cm/s a 1m/s
Precisão: erro ± 10%
Tempo de resposta: 1 a 10s
Gradiente de temperatura:15°C/min
Indicação visual: Bargraph 8 led ́s
Cabeçote: Aluminio com Pintura
Conexão elétrica: Prensa-cabo de 1⁄2” NPT
Conexão ao processo: BSP , NPT, Flange ou Sanitária
Material do corpo: Aço Inox 316
Temperatura Ambiente: -10 a 70°C
Temperatura de trabalho: -10 a + 80°C (c/ prolongador p/ 120°C) Pressão máxima:100 Bar
Classe de proteção: IP66
- ATEX
- CE
- EAC/TR CU
- IECEx
- Inmetro
- SIL 2 (Surface Mount Electronics)
- SIL 2 (Through-Hole Electronics)
- SIL (TUV)
