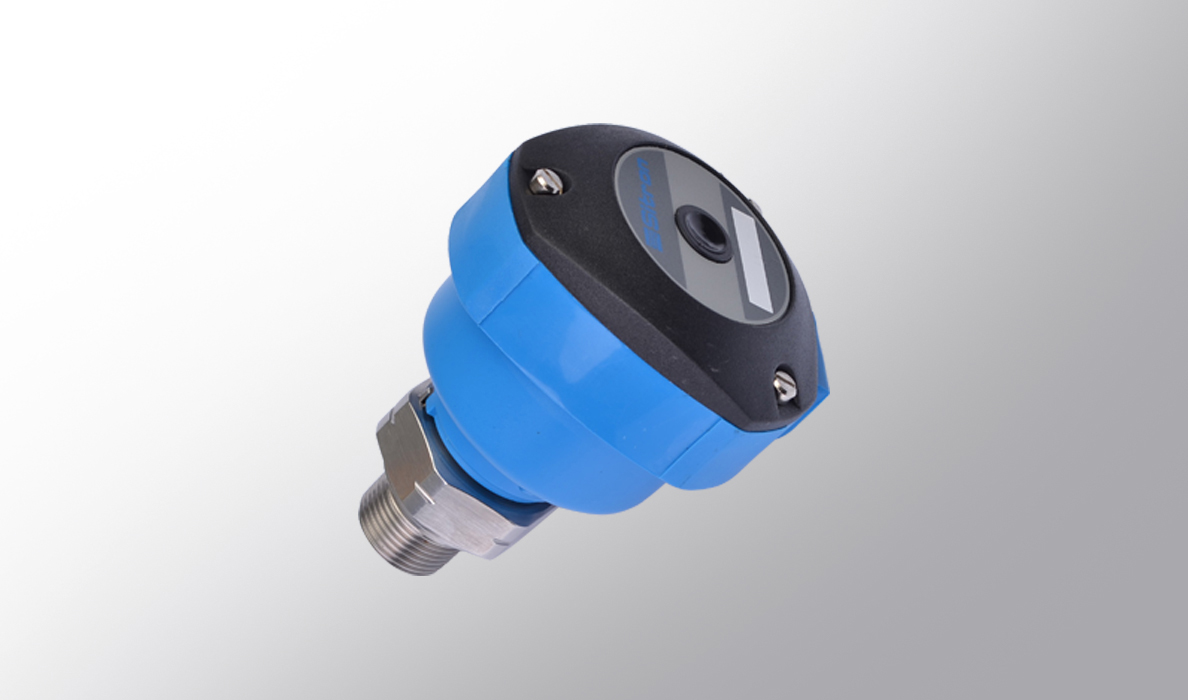

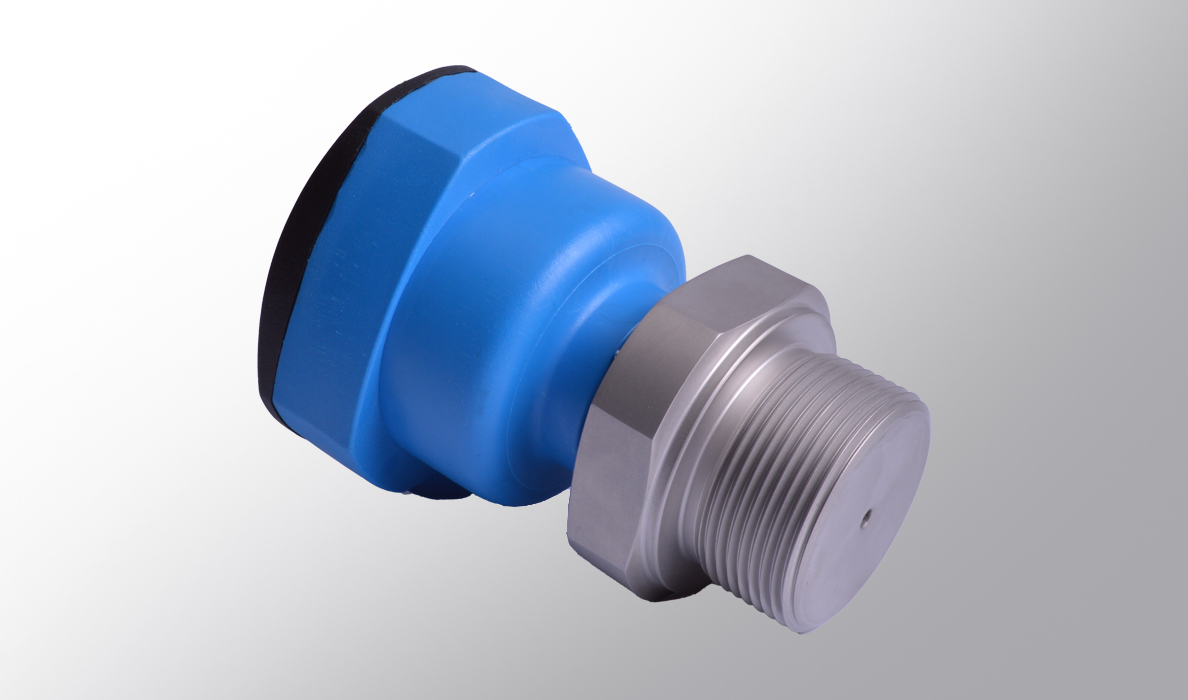

SP96FA & SP98FA – Adjustable Span with Housing and Process Connection
The SP96FA pressure transmitters are ideal for gauge and absolute pressure measurement of liquids and gases. With a great differential in terms of design and assembly, it uses piezoresistive cell technology and has a 316 stainless steel membrane filled with silicone. These features provide excellent accuracy, stability and linearity in transmitter performance. The electronic module inserted in the Nylon housing has Zero & Span Adjustment for a new measurement range adjustment with turndown of 40%.
With 316 stainless steel body, it provides great resistance to vibration, temperature variation, among other extreme conditions in industrial environments.
The SP96FA Transmitter can be manufactured and adjusted for various pressure measurement ranges up to 1000 bar with 0.5% accuracy. It has a 12…30 Vdc supply, current output from 4 to 20 mA(two wires). They are also available in different connection types to meet the high market demand.
Application: Pressure measurement of liquids and gases
Power Supply: 12…30Vdc
Consumption: 22mA max.
Output: 4…20mA (2 wires) with Zero and Span adjustment
Input Impedance (Zin): 500 ohms
Precision / Stability / Linearity: ± 0.5%
Repeatability: 0.1% of SPAN
Hysteresis: 0.1% of SPAN
Sensor Type: Piezoresistive sensor in 316 Stainless Steel
Measuring Ranges: -1 to 1000 Bar
Wetted Parts: 316SS
Housing Material: Nylon (N1) or Aluminum (G1)
Electrical Connection: 1/2″ NPT Conduit / M12 Connector
Process Connection: NPT/BSP/Flange or others
Body Material: 316SS
Ambiente Temp. / Storage Temperature: -10~50°C / -10 to +100°C
Work Temperature: -10 to +70°C
Over Oressure: 3X Full Scale
Protections: Polarity Inversion / Electrical Surge
Protection Class: IP65 (N1) / IP66 (G1)
- Ideal for various industrial environments and sanitary applications.
- Temperature compensation and long term thermal stability.
- Rugged with corrosion-resistant 316 stainless steel body
- Excellent accuracy and repeatability.
- Maximum error of 0.5%
- Protection class IP65/IP66
- Piezoresistive Sensor
- Zero & Span Adjustment (Turndown of 40%)
- Wide measuring range: (-1 to 1000Bar) relative/gauge and absolute
- Signal Output: 4…20mA (2 wires)
- Protection against: Polarity inversion and Voltage surges
- Pressure and level measurement and monitoring in all types of tanks
