SP96 – 316SS Piezo Cell Transmitter / SP98 – Capacitive Ceramic Transmitter

Home > SP96 – 316SS Piezo Cell Transmitter / SP98 – Capacitive Ceramic Transmitter

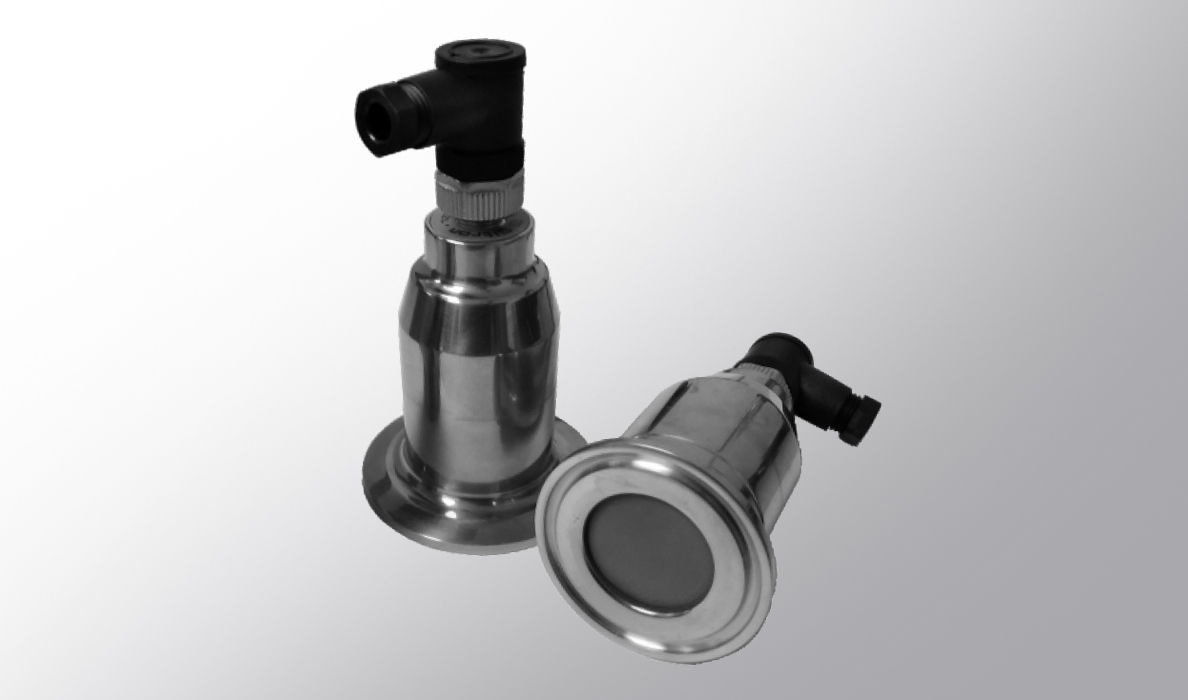

wwwee

The SP96 and SP98 Series of pressure transmitters are designed to measure the level or pressure of various industrial processes. Models can be mounted with various threaded, flanged, sanitary or SMS process connections.  All models are available with 4..20mA (2 wire) output (or voltage outputs) offer excellent stability, repeatability, accuracy and temperature compensation. HART communications protocol is also available for both models.


The SP96 (silicon piezoresistive 316SS) is suitable for all general applications with clean, non-corrosive mediums.

The SP98 (Thick Film Ceramic Capacitive Sensor) is suitable for either food industry or other sanitary applications or for the chemical industry that feature aggressive mediums or waste fluids with varying degrees of suspended solids.


Principle of Operations: The weight of the column of liquid generates hydrostatic pressure on the diaphragm of the sensor. When the density of the product is constant and the quantity of the liquid is increased or decreases, there will be a proportional output from the sensor.
