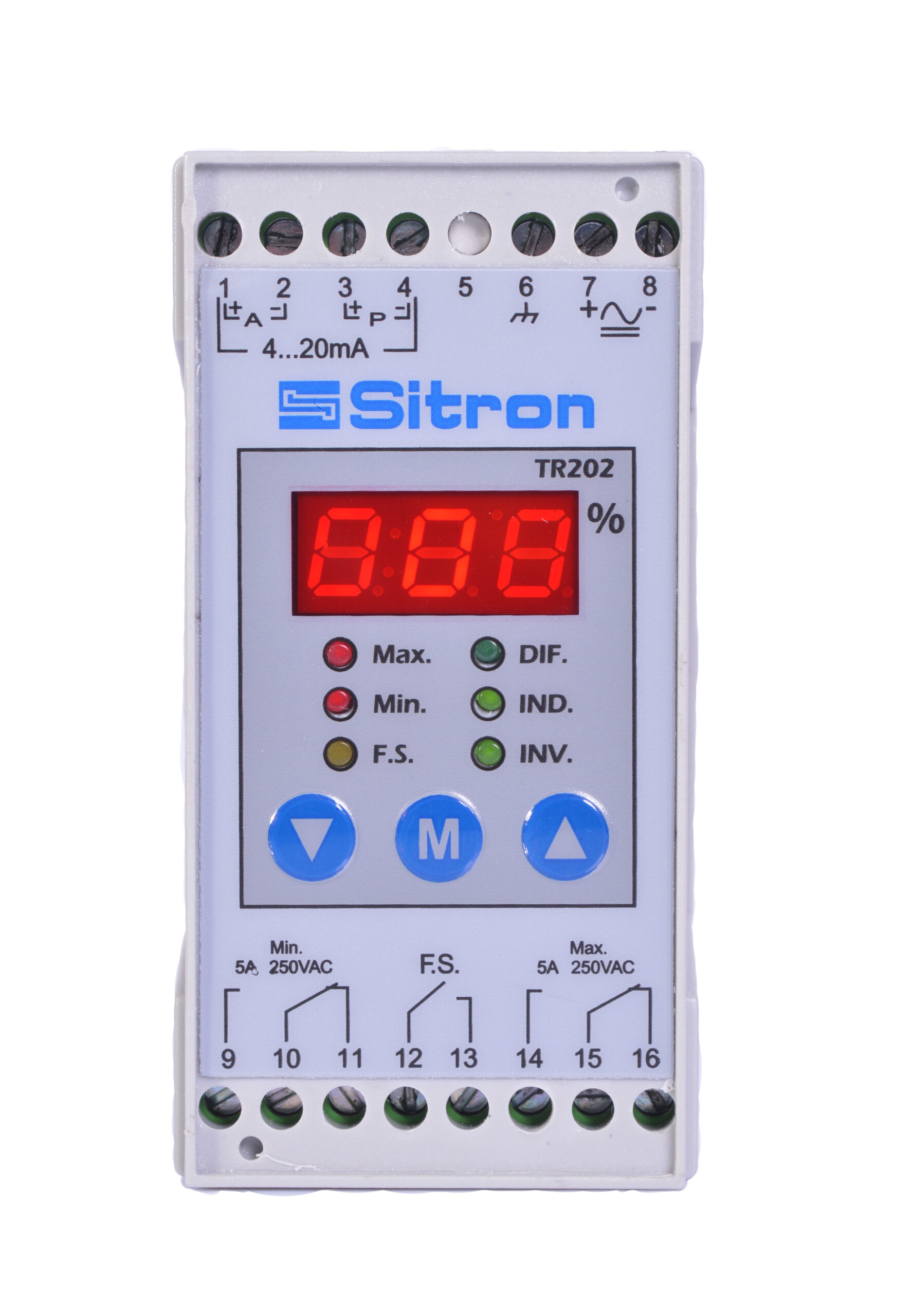

TR202 – Relay (2X SPDT and 4…20mA in/out)
The TR-202 is a compact device used to convert 4…20mA signal (2 wire) of the transmitters in Relay (SPDT). It can be easily configured to control or detection level (Min and Max). The set point adjustment allows two independent outputs are set in a range from 0 to 100%. Both configurations as the process variable are displayed on 3 digit display.
The TR-202 has Fail Safe system providing more security against power failure, wire break , short circuit, overflow and others. From some applications is often used as an electronic pressure switch for alarm minimum and maximum pressure point, for actuation and automatic shutdown of pumps in control level and among other applications.
The TR-202 is cost-effective, and can be a great option for replace complex controllers, as well as applied in all the line of Sitron’s transmitters.
Application: 4…20mA Current Converter to Relay (SPDT)
Operating Voltage: 24Vdc or AC: 100~270Vac
Consumption: >90mA / analog input short circuit >120mA
Output Signal: 4…20mA (2 wires) analog Active or Passive
Accuracy: 1% / 0.16mA
Input Impedance: 250 ohms
Protection: Polarity inversion, Power surges
Output: 2x SPDT 5A 250V
Adjustment: 3x Push-Buttons
Visualization: 3 Digits 7 Segments Display
Indication (LED): Green: Output State
Red: Off-set
Yellow: Fail Safe
Output State: Logic inversion via software
Fail Condition: Wire break or short circuit on the input analog signal /
Low Signal <3mA / High Signal> 22mA
Operating Temperature: -10…60°C
Enclosure: ABS (Resistant Thermoplastic)
Fixation: DIN rail 35mm or Screws Class
Protection: IP40
- Level Control in Industrial Process
- 3 Digits Display- Easy Visualization of the Process Variable in %
- Easy configuration with 3 Push Buttons
- Adjust the Setpoint for 2 Independent Level Active and Passive Input to Expand more Outputs.
- Microprocessor Technology.- Accuracy and Stability –
- Monitor the Input signal providing protection and a Fail Safe Class Protection. – IP40 (IEC60529)
- Protection. Polarity Inversion and Power Surges
- Any application with a measuring instrument with a 4…20mA analog output that requires SPDT switch relays and or a re-transmittable 4…20mA signal
- Calibration Certificate
