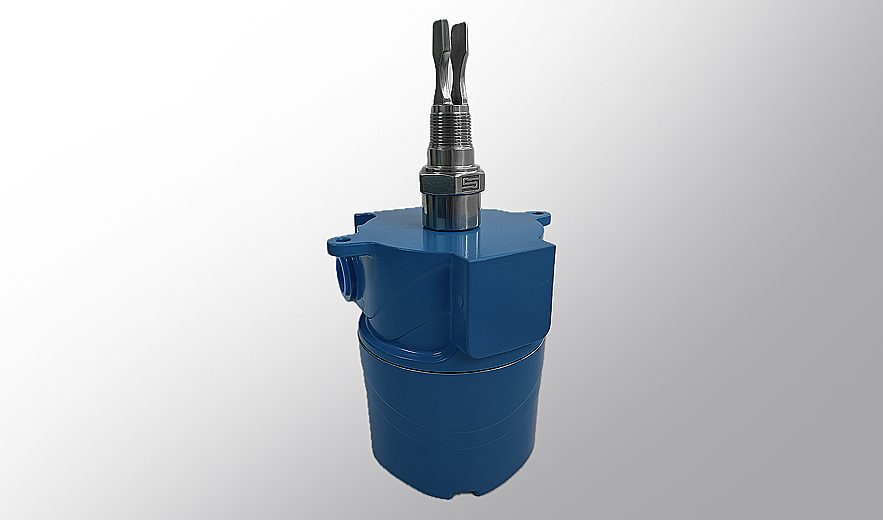

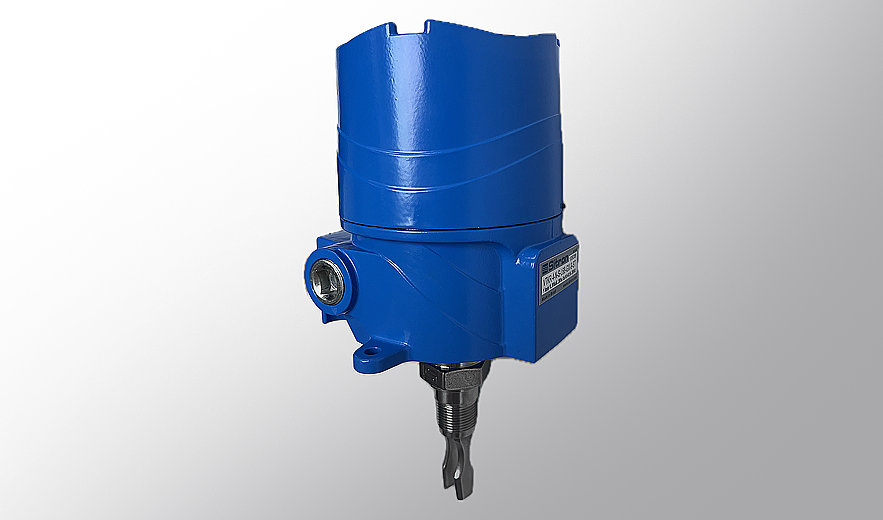

VTKR – Liquid Level Switch w/ Explosion Proof Housing
Sitron’s VTK series of vibrating tuning forks are an ideal solution for many point level detection applications because they are un-affected by either the dielectric or the conductivity of the medium. When the tuning fork is submerged in the medium the frequency at which at which it vibrates changes. This change is detected by the unit’s electronics and is converted into a switch output, relay. Users around the world have come to depend on this technology as one that is easy to apply and very reliable.
All models are made in 316 Stainless Steel, can be ordered with a great variety of threaded, flange, or hygienic fittings, are available with Halar or epoxy coatings and can operate at temperatures up to 120ºC (248ºF). All models (except the mini-versions) have a time delay adjustment of 1, 5, 10 or 20 seconds as well as a Wet/Dry selection for both High and Low level application requirements. The GX comes standard with a glass window which enables visualization of LED switch status. The GX housing comes with the following certifications: UL, CUL, CSA, IECEX and ATEX for installation in hazardous environments.
Application: Level detection for Liquids
Supply: DC: 18…36Vdc (± 10%) AC: 85…260Vac (50/60hz)
Consumption: 10mA max.
Output: Relay NO + NC (5A – 250Vac)
Accuracy: ± 0.1%
Repeatability: < 0.5mm

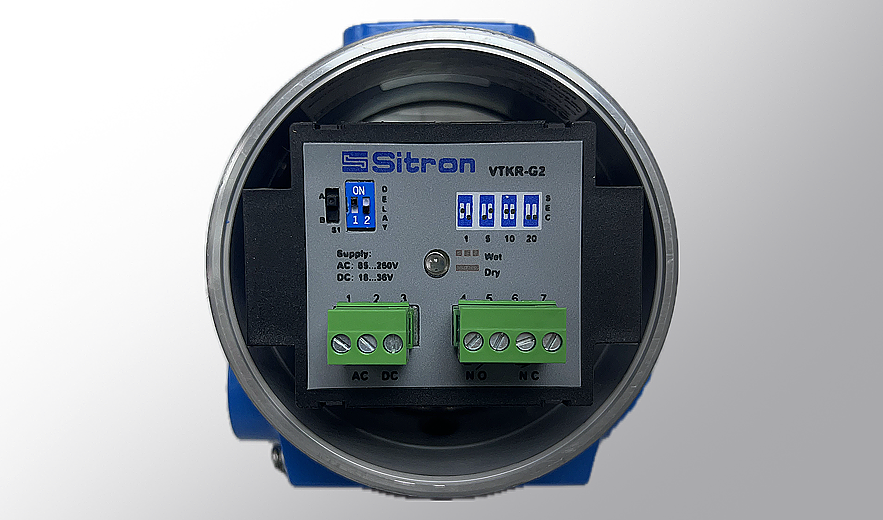

Delay: 1 to 20 sec (adjustable)
Set point: 13mm from tip
Housing: Aluminum GX with glass viewing window
Electrical Connection (cable entry): 2 x 3/4” NPT

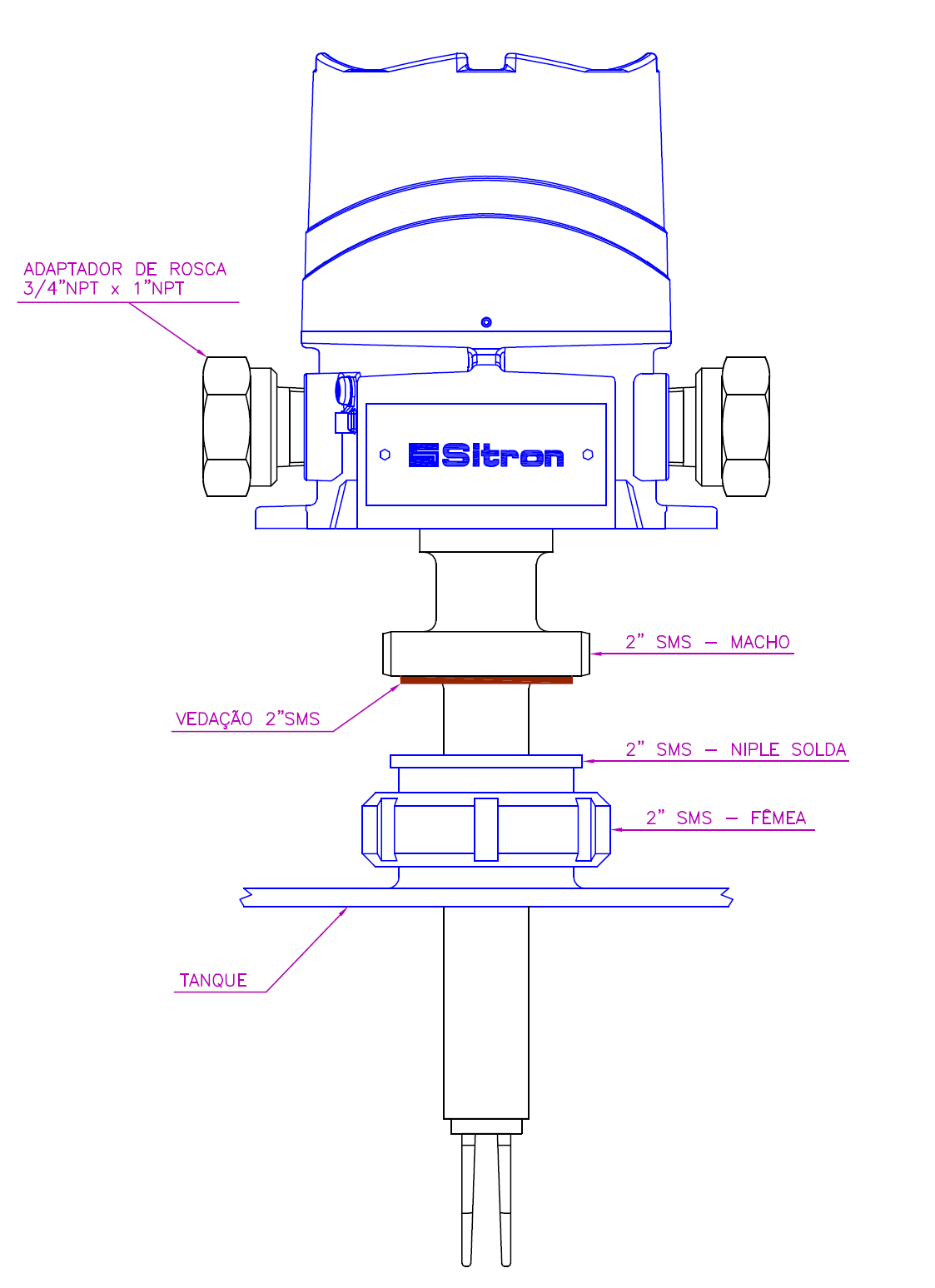

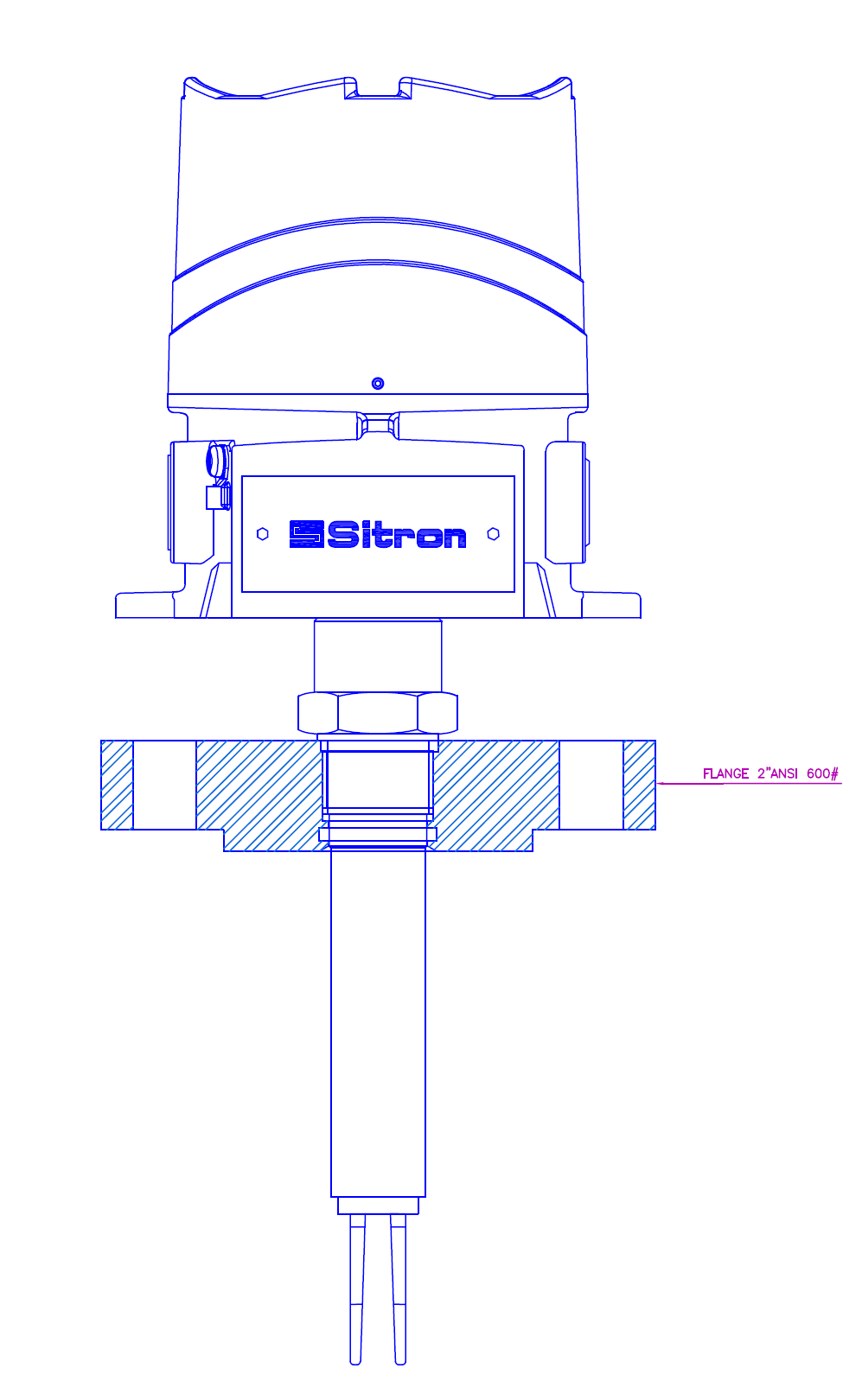

Process Connection: BSP, NPT, Flange or Sanitary
Body material: 316 SS (Hallar coating for corrosive medium upon request)
Work Temperature: -10 to + 80°C
Max Pressure: 50 Bar
Class Protection: IP66
Approvals EX proof Housing: ATEX, DEMKO 07 ATEX 0622294,
0539 II 2 G EX d IIC Gb
0539 II 2 D Ex tb IIIC Db
IECEx
IECx UL 08.0005U
Ex d IIC Gb
Ex tb IIIC Db
Classifications: Class I, Div. 1, Groups B, C, D
Class II, Div. 1, Groups E, F, G
Class III
NEMA Type 4X: Class I Zone 1 AEx d IIC
Ex d IIC (Canada)
- Explosion-proof housing (EX d)
- Robust with no moving parts
- Corrosion Resistant 316 SS Body
- Forks can be Halar coated for corrosive media
- Un-affected by either the dieletric or the conductivity of the medium.
- Protection Class IP66 (IEC 60529).
- Signal Output.
- Relay NO + NC
- Protection: Reverse Polarity / Voltage Surge / Electromagnetic Interference
- Various types of process connections: Threaded, Flanged and Sanitary
- Viewing window for visual indication of LED status
- An ideal solution for many point level detection applications because they are un-affected by either the dielectric or the conductivity of the medium.
- Calibration Certificate
- Material Certificate
- Approvals EX proof Housing:
ATEX, DEMKO 07 ATEX 0622294
0539 II 2 G EX d IIC Gb
0539 II 2 D Ex tb IIIC Db
IECEx
IECx UL 08.0005U
Ex d IIC Gb
Ex tb IIIC Db
Classifications: Class I, Div. 1, Groups B, C, D
Class II, Div. 1, Groups E, F, G
Class III
NEMA Type 4X: Class I Zone 1 AEx d IIC
Ex d IIC (Canada)
